PRODUCT DESCRIPTION

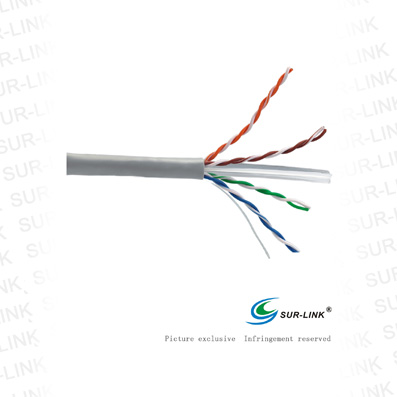

1. 4 pairs 100 Cat.6 cable, adopt 23AWG bare copper to be the center conduction, PE
to be the dielectric and fireproof material to be the jacket.
2. This cable is gray and conform to the standards like ISO/IEC, TIA/EIA and EN.
3. All the electrical characteristics are even exceed the lastest Cat.6 standards of

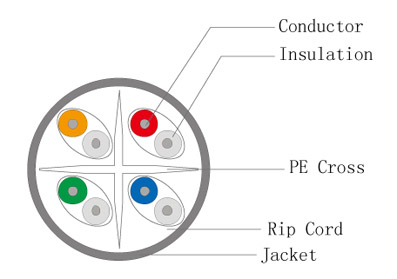

ISO/IEC. The “+” typer inner frame in the center ensures NEXT capacity and
reasonable minimum bend radius.
4. LSZH: means “Low somke zero halogen”, which is the symbol of environmental
protection.
ELECTRICAL CHARACTERISTICS
1. Impedance: 100±15
2. Return resisitance: 9.4/100m
3. Unbalance resisitance: ≤5%
4. Static electric capacity: 51pF/m 1KHz
5. Unbalance capacity: 73.2pF/100m
6. Roted communicate rate: 65%
PHYSICAL CHARACTERISTICS
1. Copper diameter: 23AWG
2. Impedance: 100±15
3. Outer diameter: 6.1±0.2mm
4. Weight: 13.5kg/kft
5. Minimum bend radius: 6-8×OD
6. Maximum pulling tension: ≤10
7. Jacket material: PVC/LSZH
8. Roted temperature: -20～60℃
9. Packing: Axles & Carton
APPLICATION
1. 10/100/1000Mbps Ethernet;
2. 100VG-AnyLAN;
3. Token ring;
4. ATM155/ATM622 etc;
STANDARD
1. ISO/IEC-11801 (2nd edition)
2. EN (2nd edition)
3. TIA/EIA-568B.2-1
